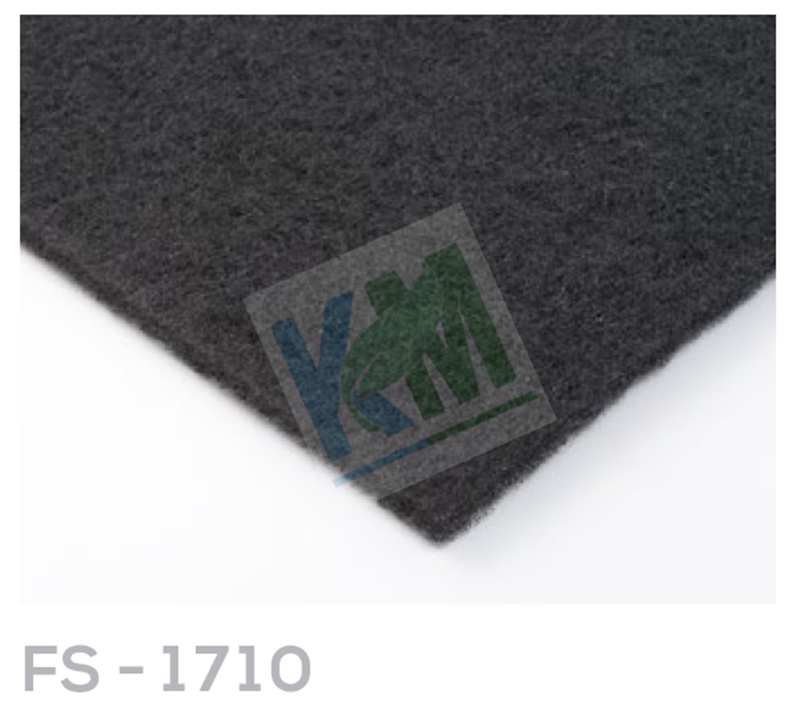

Viledon FS1710 Filter Cotton Introduction
Product Overview
Viledon FS1710 is a high-performance filter cotton designed for intake air filtration in various ventilation systems. It is particularly suitable for high-speed rail, rail transit, and communication cabinets.
Key Features
- High Dust Collection Efficiency: FS1710 effectively captures dust particles, ensuring clean air flow.
- Large Dust Holding Capacity: The filter can hold a significant amount of dust before requiring replacement, reducing maintenance frequency.
- Low Pressure Drop: It maintains low pressure loss, which helps in energy efficiency and system performance.
- Long Useful Lifetime: The material is durable and designed for extended use, providing a cost-effective solution.
- Flame Retardant Performance: FS1710 meets the highest level of Class 3 of the JACA No.11A-2003 flammability test, ensuring safety in various environments.
Technical Specifications
- Material: Polyamide/Modacrylic
- Standard Size: 1.0m × 50m
- Thickness: 11mm ± 2
- Thermal Stability: ≤60°C
- Nominal Velocity: 2.5 m/s
- Initial Resistance: 35 Pa
- Final Resistance: 200 Pa
- ASHRAE Average Efficiency: 74%
Applications
- Ventilation Systems: Ideal for pre-filtration in HVAC systems.
- Transportation: Used in high-speed rail and rail transit systems.
- Communication Cabinets: Ensures clean air for sensitive equipment.
- Industrial Equipment: Suitable for resin molding and pleating processes.
Customization
Viledon FS1710 is available in standard sizes but can also be customized to meet specific requirements. This flexibility makes it suitable for a wide range of applications.
Environmental and Safety
- Moisture Resistance: The filter is 100% moisture-resistant, making it suitable for humid environments.
- Flame Retardant: Ensures safety in environments where fire resistance is crucial.
Viledon FS1710 is a reliable choice for applications requiring high efficiency, durability, and safety. Its versatile use and customizable options make it a preferred solution in various industries.
